What capacity range does Volta Transformers offer for inverter duty units?

Volta Transformers manufactures solar and wind inverter duty transformers ranging from 100 kVA up to 20 MVA, with high voltage ratings from 11 kV to 33 kV and low voltage options from 380 V to 800 V.

Can Volta produce multi-winding transformers for connecting multiple inverters?

Yes, we design multi-winding (dual, triple, or quad LV winding) converter duty transformers that allow multiple central or string inverters to connect to a single step-up transformer, reducing footprint and overall system cost.

Which international manufacturing standards do Volta transformers comply with?

Our inverter duty transformers comply with major international standards including IEC 60076, IS 2026, IS 1180, and IEEE C57.159 guidelines for renewable energy step-up applications.

Solar & Wind Inverter Duty Transformer Manufacturer

Q: What makes an Inverter Duty Transformer different from a standard distribution transformer?

Inverter Duty Transformers are specially engineered to withstand high harmonic currents, DC offset voltages, and frequent load fluctuations generated by solar PV inverters and wind turbine convertors. They incorporate electrostatic shielding and reinforced insulation systems to mitigate thermal stress.

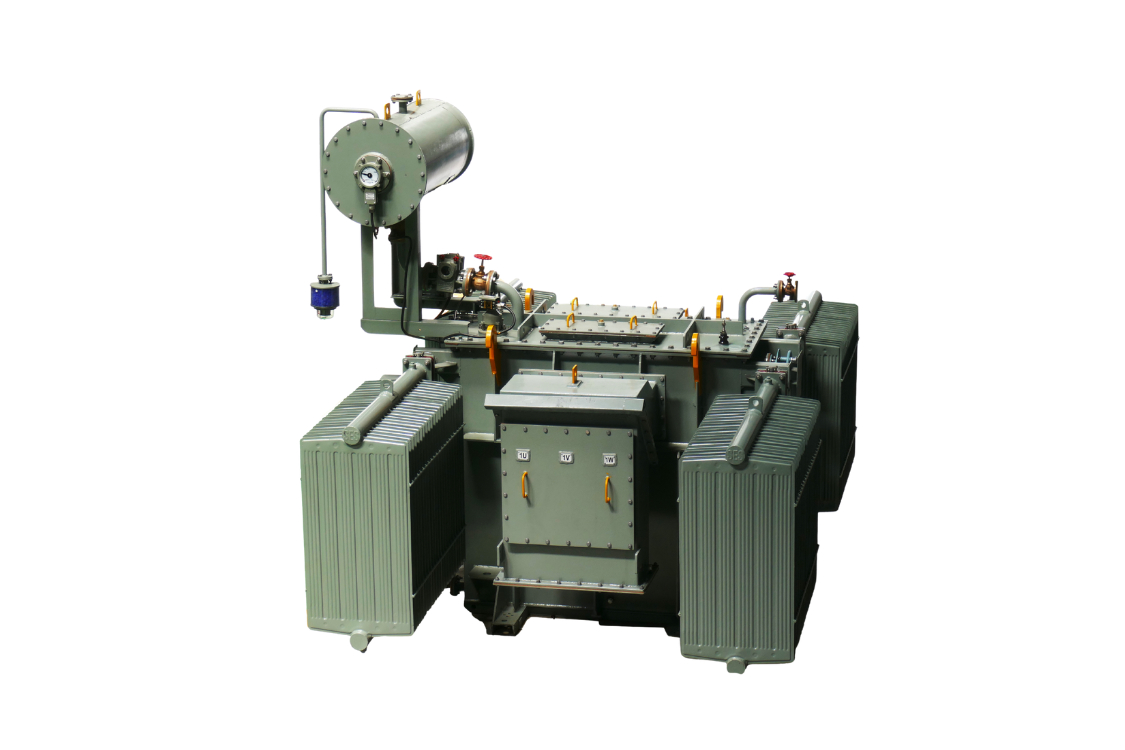

Solar Wind Inverter Duty Transformer Manufactured by Volta Transformers

Engineering Precision

Reliable Converter Duty Solutions for Solar & Wind Energy

Solar inverter duty transformers and wind inverter duty transformers (also recognized globally as Converter Duty Transformers) play a vital role in modern renewable energy generation. They step up the low, variable output voltages produced by solar PV inverters or wind turbine converters into medium-to-high voltage suitable for transmission into the regional power grid.

Due to fast-switching power electronics, these transformers face severe operational stress—including high Total Harmonic Distortion (THD), DC bias current injection, and pulsating thermal loads. Volta Transformers designs every unit with customized magnetic circuits, electrostatic shielding, and thermal margins to ensure 24/7 continuous output without premature insulation degradation.

Technical Parameters

Standard Product Specifications

Flexible power ratings and custom voltage levels tailored to central or string inverter plant architecture.

Power Capacity

100 kVA to 20 MVA

High Voltage (HV) Class

11 kV, 22 kV, 33 kV (up to 66 kV class available)

Low Voltage (LV) Class

380 V, 400 V, 415 V, 433 V, 600 V, 800 V (Multi-Winding)

Cooling Method

ONAN (Oil Natural Air Natural) / ONAF

Tapping Mechanism

OCTC (Off-Circuit) or OLTC (On-Load Tap Changer)

Vector Group

Dyn11, Dyn11y11, Dy11y11, or Custom Winding Config

Compliance Standards

IEC 60076, IS 2026, IEEE C57.159, ISO 9001:2015

Enclosure Protection

IP55 Outdoor Weatherproof / C5 Anti-Corrosion Paint

Core Advantages

Key Features of Volta Inverter Duty Transformers

Built specifically to conquer the thermal, electrical, and mechanical challenges of renewable energy substations.

Harmonic Suppression & Shielding

Engineered with electrostatic copper shielding between primary and secondary windings to minimize high-frequency noise and prevent inverter harmonics from contaminating the utility grid.

Multi-Winding Customization

Available in dual-LV, triple-LV, or multi-split winding configurations, allowing multiple solar central or string inverters to connect directly to one transformer, saving space and system cost.

High Thermal Margin

Built using low-loss, high-grade CRGO steel cores and thermally upgraded insulation materials to withstand rapid ambient temperature surges in desert solar installations or windy coastlines.

Mechanical & Short-Circuit Strength

Reinforced core-and-coil clamping architecture offers elevated resistance against severe mechanical forces caused by abrupt inverter tripping or line short circuits.

DC Bias Current Resistance

Specially calculated flux density design prevents magnetic core saturation caused by DC current injection inherent to power electronic inverter operations.

Corrosion-Proof Outdoor Tanks

Tanks undergo shot-blasting, anti-corrosive primer coating, and high-performance poly-urethane painting to survive harsh marine, desert, and tropical environments.

Global Applications

Deployed Across Green Energy Infrastructure

Delivering dependable grid synchronization for EPC contractors and project developers worldwide.

Utility Solar PV Plants

Step-up power transformation for large-scale solar parks using central or string inverters.

Onshore Wind Turbines

Heavy-duty step-up transformers fitted inside or adjacent to wind turbine towers.

Battery Storage (BESS)

Bi-directional converter transformers supplying grid stability for battery energy storage facilities.

Hybrid Energy Substations

Combined solar-wind microgrid integration requiring precise voltage step-up and harmonic filtering.

Expert Procurement Guidance

Frequently Asked Questions

Technical answers for international procurement engineers and project managers.

What makes an Inverter Duty Transformer different from a standard distribution unit?

Inverter Duty Transformers are specialized step-up units designed to endure high harmonic current content, rapid voltage switching spikes, and DC offset components emitted by solar/wind power electronic inverters. Standard transformers lack the electrostatic shielding, K-factor rated winding designs, and reinforced dielectric insulation necessary to handle these conditions over long operational lifespans.

Why are multi-winding configurations used in solar inverter duty transformers?

Multi-winding designs (such as dual or triple LV windings) allow multiple separate solar inverters to be connected to a single step-up transformer. This reduces the total number of transformers needed across large solar fields, minimizes substation footprint, and lowers installation and civil cable costs while providing galvanic isolation between inverter outputs.

How does Volta Transformers ensure quality compliance for overseas exports?

All Volta transformers are manufactured under an ISO 9001:2015 certified Quality Management System in Vadodara, Gujarat, India. Every transformer undergoes comprehensive routine testing (winding resistance, voltage ratio, losses, vector group verification, insulation resistance, and dielectric breakdown) adhering strictly to IEC 60076 and IS 2026 standards prior to sea-worthy export packing.

Can custom voltage levels and vector groups be manufactured upon request?

Yes. We specialize in custom-tailored transformer design. Whether your renewable project requires specific low voltage inputs (e.g. 600V or 800V AC), specialized vector arrangements (Dyn11y11), off-circuit tap changers, or on-load tap changers (OLTC), our engineering team builds to exact project specifications.

Download Technical Specifications & Product Catalog

Gain detailed dimensional drawings, loss ratings, and technical compliance datasheets for your upcoming renewable project quotation.
