Standard-Compliant Distribution Transformer Solutions for Global Infrastructure

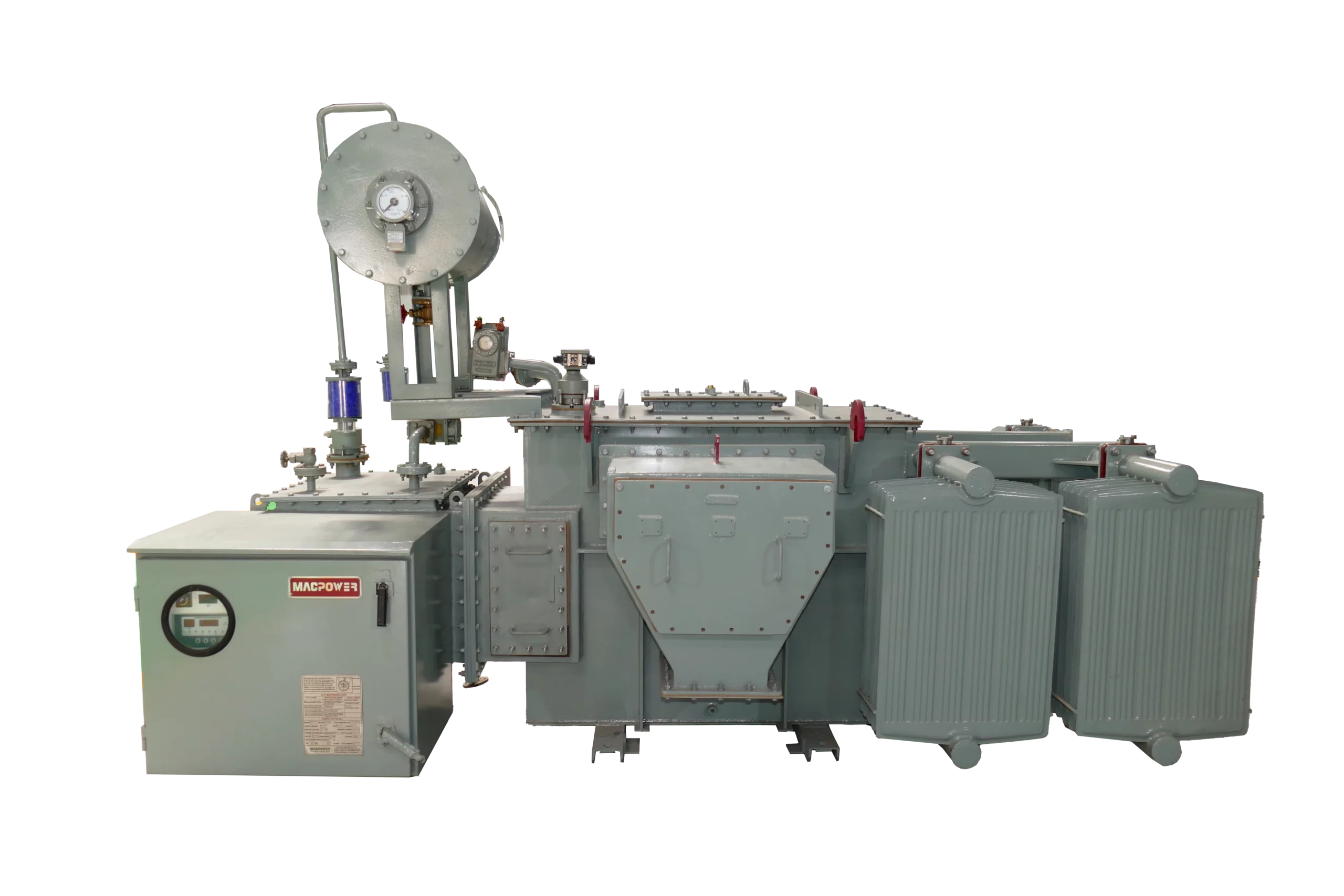

Volta Transformers is a premier manufacturer and international exporter of high-efficiency oil-immersed and dry-type distribution transformers headquartered in Vadodara, Gujarat, India. Engineered to deliver stable electricity stepping down high transmission voltages to usable load levels, our distribution transformers form the backbone of modern power grids, industrial plants, and commercial complexes worldwide.
Manufactured under strict ISO 9001:2015 Quality Management Systems and certified under Bureau of Indian Standards (BIS IS 1180: Part 1: 2014) as well as IEC 60076 international standards, each transformer guarantees optimal energy efficiency, low operational losses, and exceptional operational safety under demanding climatic environments.
Key Technical Features & Advantages
Designed with cutting-edge loss-reduction technology and superior insulation materials for decades of uninterrupted duty.
Low-Loss CRGO Core
Utilizes prime-grade Cold Rolled Grain Oriented (CRGO) silicon steel laminations with multi-step lap miter joints to minimize no-load losses and noise levels.
High-Purity Windings
Precision-wound using 99.99% electrolytic grade copper or high-conductivity aluminum wire insulated with thermal-class papers for maximum short-circuit strength.
Efficient Thermal Cooling
Engineered for ONAN (Oil Natural Air Natural) cooling with corrugated tank walls or detachable radiator banks ensuring optimal heat dissipation during peak loads.
Heavy-Duty Corrosion Protection
Shot-blasted steel tanks coated with multi-layer polyurethane or epoxy paint system (C4/C5 compliant) for extreme ambient resilience against moisture and chemicals.
Tap Changer Flexibility
Equipped with Off-Circuit Tap Changers (OCTC) or On-Load Tap Changers (OLTC) to ensure smooth voltage regulation across varying grid conditions.
Advanced Safety Equipment
Fitted with essential protective gear including Buchholz relays, pressure relief devices, magnetic oil level gauges, and dial-type oil/winding thermometers.
Comprehensive Technical Specifications
Our distribution transformers are fully customizable to meet exact international grid codes and procurement requirements.
| Parameter | Standard & Custom Options Available |
|---|---|
| KVA / MVA Rating | 25 kVA up to 6,000 kVA (6 MVA) |
| High Voltage (HV) Class | 1.1 kV, 3.3 kV, 6.6 kV, 11 kV, 13.8 kV, 15 kV, 22 kV, 33 kV, 34.5 kV, up to 66 kV |
| Low Voltage (LV) Class | 380 V, 400 V, 415 V, 433 V, 440 V, 690 V (Custom LV options on request) |
| Phase & Frequency | Three-Phase / Single-Phase; 50 Hz or 60 Hz |
| Vector Group | Dyn11, Dyn5, Ynd11, or tailored to client substation requirements |
| Cooling System | ONAN (Oil Natural Air Natural) / ONAF (Forced Air Option) |
| Winding Material | Electrolytic Grade Copper / Electrical Grade Aluminum |
| Insulation Class | Class A (Oil-Filled) / Class F or H (Dry-Type) |
| Standard Compliance | IEC 60076, IEEE C57, IS 1180 Part 1: 2014, ISO 9001:2015, ANSI |
| Tap Switch Range | Off-Circuit Tap Changer (OCTC: ±2.5% to ±5%) / On-Load Tap Changer (OLTC) |
Primary Industrial & Utility Applications
Trusted by utility operators, EPC contractors, and industrial plants across international markets.
Quality Control & Rigorous Factory Testing
At Volta Transformers, quality assurance is integrated into every phase of manufacturing. Our in-house testing lab is equipped with state-of-the-art diagnostic instruments to verify electrical, mechanical, and thermal performance prior to export dispatch.
Frequently Asked Questions
Technical answers for electrical engineers and international procurement managers.
Ready to Source High-Reliability Distribution Transformers?
Consult our engineering team for customized datasheets, CAD drawings, and factory-direct quotation.
