Three-Phase Liquid-Filled Pad-Mounted Transformers

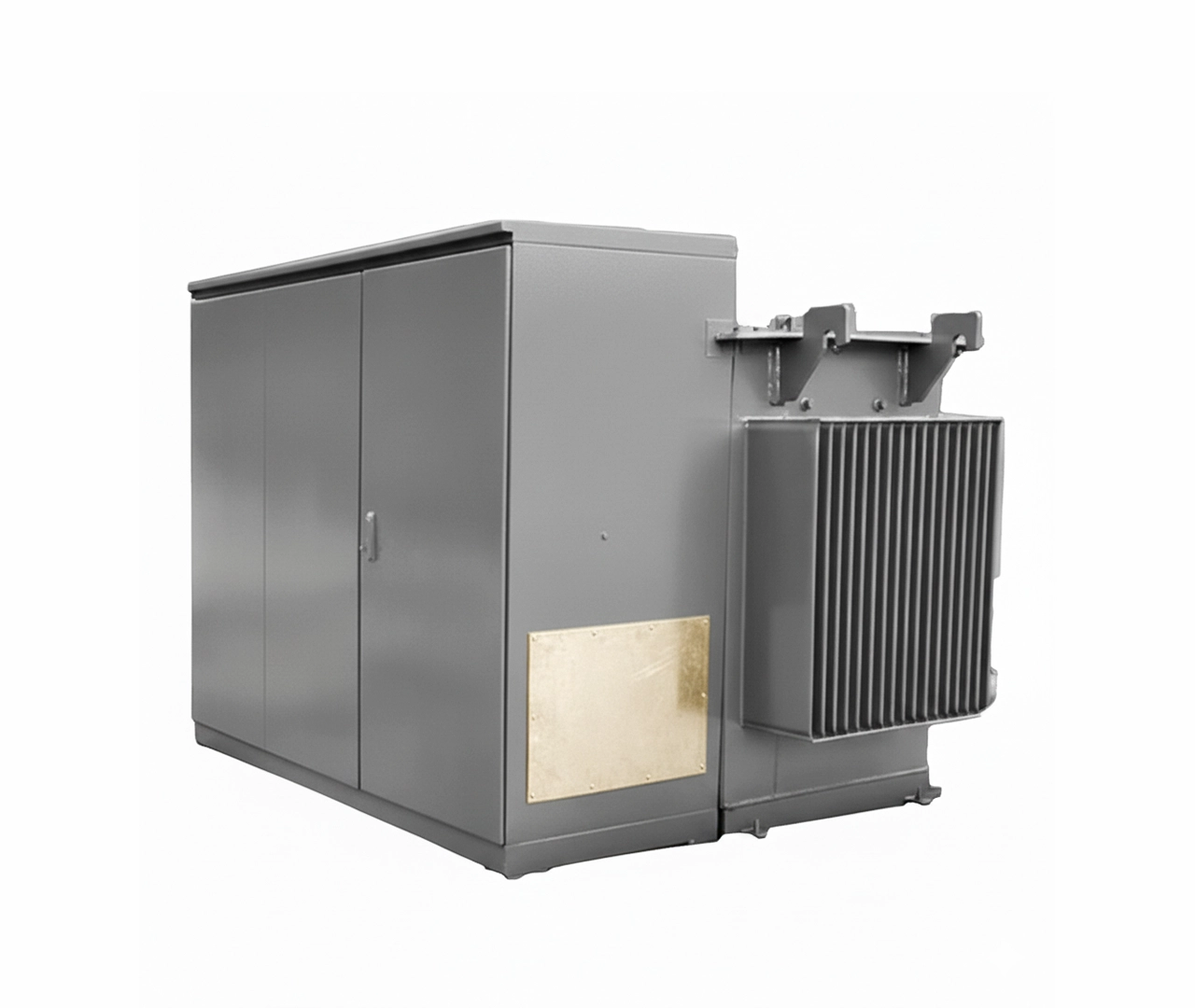

Volta Transformers manufactures a comprehensive series of three-phase, liquid-filled pad-mounted distribution transformers engineered for reliable outdoor installation on ground-level concrete pads. Built to serve heavy commercial, industrial, institutional, and utility loads, our pad-mounted transformers ensure safe, continuous, and efficient power delivery across underground cable networks worldwide.
Designed in full compliance with international standards such as IEEE C57.12.28, ANSI, and IEC 60076, each unit is enclosed in a tamper-resistant, weatherproof steel cabinet. Featuring dead-front safety construction and high-grade insulating fluids, Volta pad-mounted transformers deliver long operational lifespans with minimal maintenance requirements in demanding climatic conditions.
Technical Specifications
Customizable electrical parameters designed to meet international grid and procurement standards.
| Specification Parameter | Standard Rating / Feature Description |
|---|---|
| Rated Power Capacity | 100 kVA to 5000 kVA (ONAN rating) |
| Primary Voltage Class | Up to 34.5 kV (Common: 11 kV, 12.47 kV, 13.2 kV, 13.8 kV, 33 kV, 34.5 kV) |
| Secondary Voltage Class | 380 V, 400 V, 415 V, 433 V, 440 V, 480 V, 600 V, 690 V (Custom steps available) |
| Cooling Type & Fluid | ONAN / KNAN — Mineral Transformer Oil (IEC 60296) or Biodegradable Synthetic Ester Fluid |
| Winding Material | High-Purity Electrolytic Copper / High-Grade Aluminum Winding |
| Configuration Options | Loop Feed / Radial Feed; Dead-Front or Live-Front Terminations |
| Frequency & Insulation Class | 50 Hz / 60 Hz; Class A Insulation; Standard temperature rise 65°C oil / 65°C winding |
| Enclosure Protection | NEMA 3R / IP54 Tamper-Proof Heavy-Gauge Steel Cabinet with C5M Anti-Corrosion Finish |
| Applicable Standards | IEC 60076, IEEE C57.12.28, ANSI, ISO 9001:2015, BIS IS 1180 |
Engineering & Design Excellence
Precision-engineered components delivering superior efficiency, structural durability, and operational safety.
Tamper-Proof & Safe
Integrated steel cabinet with flush door design, recessed padlock hasp, and penta-head locking mechanism preventing unauthorized access and ensuring public safety in urban environments.
Low Losses & High Efficiency
Built with high-permeability, cold-rolled grain-oriented (CRGO) silicon steel cores, drastically reducing no-load losses and total operational cost over a 30+ year service life.
Advanced Thermal Management
Optimized oil flow channels combined with corrugated cooling fins or external radiators maintain low operating temperatures and preserve winding insulation integrity.
Corrosion Protection Finish
Multi-stage shot blasting followed by zinc-rich epoxy primer and polyurethane powder coating protects against harsh coastal, marine, humid, and chemical atmospheric conditions.
Comprehensive Protection
Fitted with high-voltage bay-o-net current-limiting fuses, automatic pressure relief valves, liquid level gauges, and dial-type oil thermometer sensors for early fault detection.
Custom Tailored Solutions
Fully custom engineered to meet specific utility grid interconnect requirements, dual-voltage primary requirements, and specialized enclosure dimensional constraints.
Global Industrial & Utility Applications
Volta pad-mounted transformers provide compact, aesthetically pleasing power distribution nodes for modern underground electrical distribution infrastructures across various global sectors:
Stringent Testing & Export Compliance
At Volta Transformers, quality management is embedded into every stage of manufacturing. All raw materials—including electrolytic copper, CRGO laminations, and transformer oil—undergo strict incoming inspection. Every completed pad-mounted transformer undergoes comprehensive Factory Acceptance Testing (FAT) in our ISO 9001:2015 certified laboratory before dispatch.
Routine & Type Testing
Testing performed strictly per IEC 60076 / IEEE C57 standards: Winding Resistance Measurement, Voltage Ratio & Vector Group Verification, Impedance Voltage & Load Loss Test, No-Load Loss & Current Test, Separate Source AC Withstand Test, and Induced Overvoltage Test.
Export Packaging & Logistics Support
Equipped for seamless international ocean freight shipment. Units are secured with sea-worthy heavy wooden crating, internal desiccant protection, and robust lifting lugs to guarantee damage-free delivery to overseas project sites.
Frequently Asked Questions
Technical insights for engineering consultants, contractors, and international procurement managers.
Require Technical Specifications or a Custom Commercial Quote?
Our application engineers are available to support global EPC contractors, power utilities, and procurement officers with custom CAD drawings, technical datasheets, and competitive export pricing.
