Integrated Power Distribution Solutions (100 kVA to 4000 kVA)

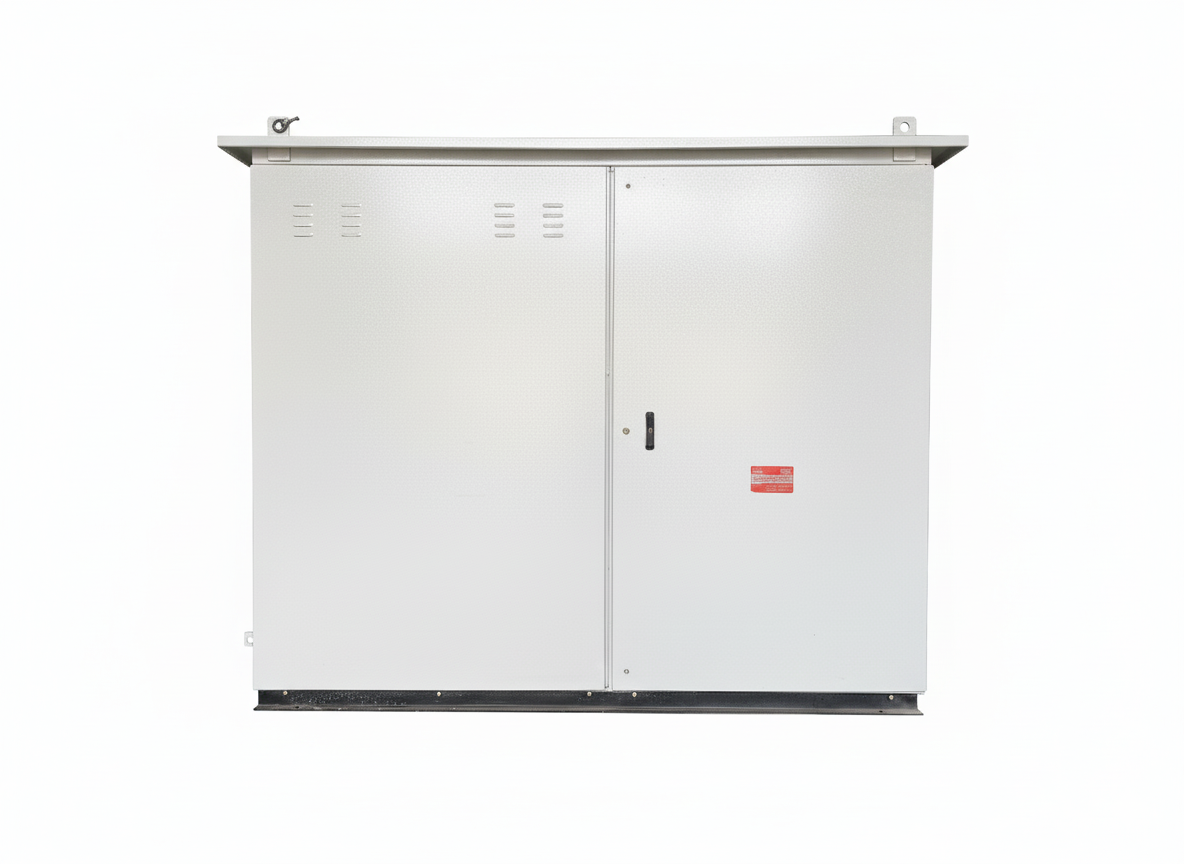

A Compact Substation (CSS), also referred to as a Package Substation or Prefabricated Substation, is an engineered, type-tested, factory-assembled unit designed for direct installation in high-density urban power distribution networks, renewable energy projects, and heavy industrial facilities. Volta Transformers manufactures state-of-the-art CSS units that house medium-voltage (MV) switchgear, an energy-efficient power or distribution transformer, and a low-voltage (LV) main distribution board within a single, secure weatherproof enclosure.
Engineered in compliance with international standards such as IEC 62271-202, IS 1180, and ISO 9001:2015 quality management systems, Volta compact substations eliminate the complex civil construction, lengthy installation timelines, and high labor costs associated with traditional open-air substations.
Technical Specifications & Operational Range
Our compact substations are customized according to grid requirements, environmental factors, and client load profiles for overseas buyers and EPC contractors worldwide.
| Parameter | Standard Technical Range |
|---|---|
| Power Capacity | 100 kVA up to 4000 kVA (Custom designs up to 5 MVA) |
| Primary Voltage Class (MV) | 11 kV, 22 kV, 33 kV (50 Hz / 60 Hz) |
| Secondary Voltage Class (LV) | 380 V, 400 V, 415 V, 433 V, 440 V |
| Internal Transformer Types | ONAN Oil-Filled Distribution / Dry-Type Cast Resin Transformer |
| Tap Changer Options | Off-Circuit Tap Changer (OCTC) / On-Load Tap Changer (OLTC) |
| Switchgear Protection (MV) | Ring Main Unit (RMU) with SF6 or Vacuum Circuit Breaker (VCB) |
| Enclosure Protection Class | IP54 / IP55 Weatherproof Outdoor Steel or Aluminum-Zinc Alloy |
| Design Compliance | IEC 62271-202, IEC 60076, IS 1180: Part 1: 2014, ISO 9001:2015 |
Key Architectural & Engineering Advantages
Space-Saving Footprint
Reduces physical installation space by up to 70% compared to conventional open-yard substations, ideal for space-restricted industrial plants and commercial complexes.
Turnkey Plug-and-Play Setup
Fully wired, routine-tested, and assembled in our Vadodara facility before dispatch, significantly reducing on-site commissioning time and field labor expenses.
All-Weather Protection
Engineered with double-walled thermal insulation, anti-corrosion powder coating, and IP55 protection to operate reliably under extreme humidity, dust, and coastal environments.
Maximum Operator Safety
Equipped with internal arc protection, mechanical safety interlocks, and segregated compartments to ensure zero risk to operating personnel and nearby civilian areas.
Global Applications & Industries Served
Volta Compact Substations are engineered for versatile power delivery across challenging operational environments worldwide:
- Renewable Energy Generation: Solar PV power plants and onshore wind farms requiring step-up voltage integration to grid connections.
- Infrastructure & Urban Utilities: Commercial high-rise developments, smart city power networks, metro rail stations, and hospital complexes.
- Industrial & Processing Facilities: Steel mills, chemical processing plants, automotive manufacturing hubs, and mining sites.
Strict Quality Control & Testing (E-E-A-T Assurance)
Every compact substation produced at our facility undergoes rigorous Quality Assurance (QA) inspections and factory acceptance testing (FAT) before export. Testing protocols include dielectric breakdown analysis, partial discharge measurements, temperature rise testing, and operational interlocking checks according to IEC standards. With over 15 years of industry experience and a client base spanning 500+ global enterprises, Volta Transformers guarantees peak reliability and long-term durability.
Request a Customized Technical Quote for Your Project
Consult with our lead engineering team to review system single-line diagrams (SLD), enclosure specifications, and international delivery schedules.
