Certified Prefabricated & Modular Substation Series
Custom-manufactured compact transformer substations, E-Houses, and outdoor kiosks built to European DIN EN 62271-202 specifications with seamless export delivery to Berlin.
10-40.5KV 100KVA-5000KVA MV/TR/LV CSS Prefabricated Modular Electrical House E-House

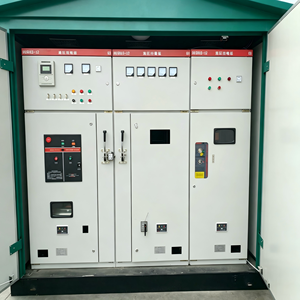

Custom IP54 Outdoor Prefabricated Substation 24kV/10kV High Rigidity Stainless Steel Construction
Electrical Equipment YBW Compact Substation Prefabricated Transformer Substation

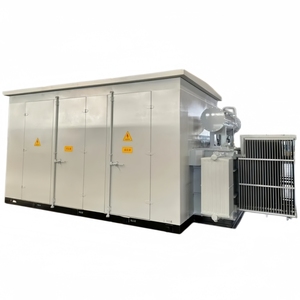

Box Type Substation Compact Prefabricated Substation Outdoor Containerized Unit

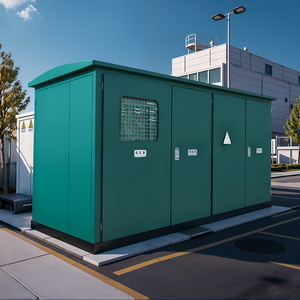

Box-type Substation Outdoor Box Substation 630kva 800kva Transformer Substation
Outdoor 11kv 33kv Three Phase Mobile Substation Package Cubicle Kiosk Type

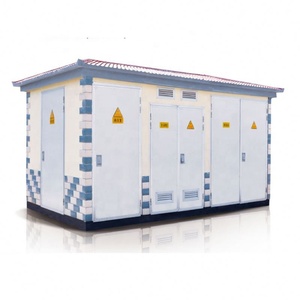

YAWEI 1250KVA 1500KVA Outdoor Compact Metal-clad Distribution Substation

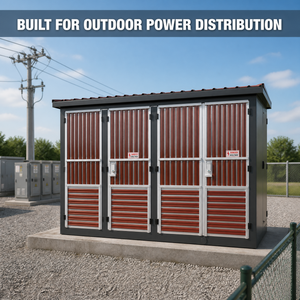

Box Type Substation 10kv 35kv Three Phase Prefabricated Transformer Substation
Navigating Berlin’s Urban Grid Infrastructure Transition
A comprehensive guide for EPC contractors, municipal utilities, and industrial developers procuring custom prefabricated power substations in the Berlin-Brandenburg metropolitan region.
The Berlin Energiewende & Grid Bottlenecks
As the capital city of Germany accelerates its transition toward 100% carbon-neutral energy under the Berliner Energiewende strategy, the regional distribution grid managed by local operators like Stromnetz Berlin faces unprecedented operational stress. The rapid adoption of urban photovoltaic systems, commercial EV charging plazas, and high-density heat pumps requires rapid medium-voltage (MV) grid expansion.
Custom OEM prefabricated power substations serve as the foundational backbone for this transformation. By stepping down 24 kV or 10 kV distribution voltages into standardized 400V/230V low-voltage municipal feeds, factory-tested Compact Secondary Substations (CSS) bypass lengthy civil construction timelines, offering turn-key energized deployment in compact urban footprints.
Regulatory Compliance: DIN EN & VDE Directives
Deploying electrical equipment within Germany requires strict adherence to European Union directives and German national standards. OEM substations exported to Berlin must meet strict internal arc safety ratings and electromagnetic compatibility guidelines:
- DIN EN 62271-202 (VDE 0671-202): High-voltage switchgear and controlgear — Part 202: High-voltage/low-voltage prefabricated substations.
- VDE-AR-N 4110 (TAR Mittelspannung): Technical requirements for the connection and operation of customer installations to the medium-voltage network.
- TA Lärm Acoustic Limits: Noise abatement controls requiring sound-attenuated enclosure walls (<45 dBA at 1-meter distance) for installation in residential Berlin zones like Mitte or Pankow.
Key Application Scenarios in Berlin & Brandenburg
From dense urban infill developments to suburban industrial corridors, our custom OEM substations are engineered specifically for regional German environmental and operational challenges.
Urban Infill & Commercial Real Estate
Berlin’s ongoing commercial development projects in Friedrichshain-Kreuzberg and Neukölln demand minimal physical footprints. Our IP54 outdoor stainless steel compact substations integrate MV switchgear (SF6-free or compact Ring Main Units), dry-type transformers, and LV distribution panels inside an aesthetically neutral, anti-graffiti enclosure engineered for narrow alleyways and courtyard placements.
Mega EV Fleet Depots & Fast-Charging Plazas
Electrifying public transport networks (such as BVG bus depots) and high-power highway charging parks along the A10 Berlin Ring motorway demands robust step-down capacity. Our 1250 kVA to 5000 kVA prefabricated E-Houses provide dedicated multi-feed MV loops equipped with active harmonic filtration to prevent grid contamination caused by massive DC fast-charging non-linear loads.
High-Tech Campuses & Data Centers
Facilities across Adlershof Science and Technology Park, CleanTech Park Marzahn, and suburban Brandenburg data centers require 99.999% power availability. We supply containerized double-ended modular substations featuring automatic transfer switches (ATS), SCADA-ready IEC 61850 communication gateways, and N+1 redundant transformer configurations for uncompromised uptime.
Standard Prefabricated vs. Custom OEM Substation Engineering
Why specialized OEM customization delivers lower Total Cost of Ownership (TCO) and faster grid-interconnection approvals in Germany.
| Feature Parameter | Generic Offshore Prefabricated Unit | Our Custom OEM Substation (Berlin Spec) |
|---|---|---|
| Enclosure Material & Coating | Standard Mild Steel with Basic Powder Coating | High-Rigidity 304/316L Stainless Steel or C5-M Anti-Corrosion Treated Aluminum-Zinc |
| Grid Code Compliance | Generic Global Voltage Taps | 100% VDE-AR-N 4110 & Stromnetz Berlin Technical Interconnection Standards |
| Environmental Protection | IP43 / IP52 (Risk of water/dust ingress) | IP54 / IP65 Waterproof Sealed Compartments with Dual-Roof Thermal Insulation |
| Internal Arc Fault Rating | Uncertified or IAC-A only | Type-Tested IAC AB 20kA 1s for Maximum Personnel and Public Operator Safety |
| Environmental Safety (Oil Protection) | No Integrated Oil Containment | WHG-Compliant Leak-Proof Integrated Oil Collector Bunds (Wasserhaushaltsgesetz) |
| Smart Telemetry & IoT | Hardwired Local Indicators Only | IEC 61850 SCADA Ready, Remote RTU Monitoring, Smart Grid Fiber/4G Gateways |
Technological Innovations Driving Berlin's Grid
How our factory design roadmap incorporates emerging European environmental directives and smart grid intelligence.
1. SF6-Free Eco Switchgear
In accordance with updated EU F-gas regulations banning sulfur hexafluoride (SF6) greenhouse gases in electrical gear, our OEM facility manufactures substations integrated with dry-air or vacuum-insulated Medium Voltage Ring Main Units (RMU). This guarantees compliance with upcoming German municipal procurement environmental mandates.
2. Hermetically Sealed & Bio-Oil Ready
To support groundwater conservation standards across Berlin's waterways (Spree and Havel regions), our oil-immersed transformers utilize natural ester synthetic bio-oils. These biodegradable fluids offer higher fire flashpoints (>300°C) and zero water hazard classifications, enabling placement in eco-sensitive zones.
3. Digital Twin & Predictive Thermal Analytics
Each custom substation exported to the European market can be outfitted with fiber-optic winding temperature sensors, dissolved gas analysis (DGA) monitors, and ambient moisture meters. Data is transmitted directly to local municipal SCADA management tools for predictive maintenance scheduling.
Frequently Asked Questions for Berlin Buyers
Clear engineering and logistical answers for German project developers, electrical engineers, and import buyers.
What is the standard delivery lead time for export substations to Berlin?
Are your custom substations fully compliant with DIN EN 62271-202 and VDE-AR-N 4110?
Can you provide custom housing finishes for residential Berlin historical districts?
What Factory Acceptance Testing (FAT) is performed prior to export dispatch?
How do you handle environmental compliance regarding transformer oil spills?
Factory OEM Strengths & Export Reliability
Backing your power infrastructure projects with 15+ years of specialized high-voltage manufacturing expertise, international certifications, and end-to-end technical support.
High-Rigidity Enclosures
Constructed with heavy-gauge corrugated stainless steel or marine-grade aluminum alloys, engineered to withstand extreme weather (-25°C to +40°C), heavy snow loads, and high humidity without structural degradation.
ISO & Type-Tested Quality
Our state-of-the-art manufacturing facility operates under ISO 9001:2015, ISO 14001:2015, and ISO 45001 standards. Third-party type-test reports from accredited international labs guarantee short-circuit and arc safety compliance.
Turn-Key Customization
From flexible MV/LV cable entry arrangements to specialized transformer voltage ratios (e.g., 20kV to 400V, 10kV to 690V), our engineering team designs around your exact project single-line diagrams (SLD).
Ready to Power Your Berlin Infrastructure Project?
Consult with our senior electrical engineering team today for technical single-line diagram reviews, custom CAD drawings, VDE compliance consulting, and direct factory quotation pricing.
