Nigeria-Spec Pad-Mounted & Substation Equipment
Explore our primary inventory of heavy-duty pad-mounted transformers, integrated loadbreak switches, fuse disconnectors, and isolation enclosures built specifically to survive harsh African climates and unstable grid dynamics.
Executive Technical Overview: Custom OEM Pad-Mounted Transformers for Nigeria
Addressing the electrical infrastructure transition across West Africa's primary economic engine with resilient, tamper-proof underground distribution systems.
Modernizing Underground Reticulation
As major urban initiatives across Nigeria—such as Eko Atlantic City, Lekki Phase 1, Victoria Island developments, and Abuja Central Business District—shift away from vulnerable overhead lines, demand for tamper-proof, ground-level pad-mounted transformers has reached an all-time high. Unlike traditional pole-mounted transformers exposed to harsh weather and unauthorized interference, OEM pad-mounted units integrate high-voltage switchgear, liquid-filled transformer tanks, and low-voltage distribution compartments into a single, fully enclosed steel housing.
IEEE C57.12.28 Enclosure Integrity & Security
Security and operational safety remain paramount in the Nigerian market. Our custom OEM units are manufactured in accordance with strict IEEE C57.12.28 and IEEE C57.12.29 enclosure integrity standards. Featuring dead-front construction, recessed penta-head locking bolts, dual-point door latches, and internal baffle plates, these transformers actively prevent unauthorized access, metal theft, and accidental contact in high-density residential and public commercial zones.
Localized Application Scenarios Across Nigerian Sectors
Tailored OEM designs engineered to solve site-specific distribution challenges across commercial, industrial, renewable, and petrochemical sectors in Nigeria.
1. Commercial Real Estate & High-Density Urban Centers
Deployed across luxury residential estates, shopping malls, and corporate office parks in Lagos (Lekki, Ikoyi, Victoria Island) and Abuja (Maitama, Asokoro). Compact footprints allow installation in tight outdoor spaces without requiring expensive brick-and-mortar substation buildings.
2. Industrial Hubs & Special Economic Zones (SEZs)
Serving heavy industrial installations in the Agbara Industrial Estate, Ogun State manufacturing corridors, and Kano Free Trade Zones. Built to withstand extreme motor-starting currents, heavy harmonic distortion, and continuous high-load operations.
3. Solar IPP & Off-Grid Hybrid Microgrids
Supporting commercial solar mini-grids and utility-scale photovoltaic plants across Northern Nigeria. Custom step-up pad-mounted transformers integrate solar inverter outputs (400V/800V AC) up to 11kV or 33kV for long-distance regional distribution.
4. Oil & Gas Offstream Facilities & Refineries
Providing safe, sealed auxiliary step-down power inside petrochemical complexes, fertilizer plants, and coastal tank farms in the Niger Delta and Lekki Free Zone. Fitted with marine-grade C5-M anti-corrosion polyurethane paint systems.
Engineering Architecture & Technical Specifications
Comprehensive baseline parameters for our OEM export series to Nigeria. Fully customizable according to local Electricity Distribution Company (DISCO) specifications.
| Parameter Specification | Standard OEM Configuration | High-Capacity Utility Grade | Solar / Inverter Duty Option |
|---|---|---|---|
| Power Rating (kVA) | 75 kVA – 1,000 kVA | 1,250 kVA – 3,750 kVA | 500 kVA – 5,000 kVA |
| Primary Voltage Class | 11 kV (Delta / Wye) | 33 kV (Delta / Wye) | 11 kV / 33 kV Dual Voltage |
| Secondary Voltage | 415V / 240V (Star, Dyn11) | 415V / 240V 4-Wire Solidly Grounded | 315V – 800V Multi-Winding AC Input |
| Basic Impulse Level (BIL) | 75 kV – 95 kV BIL | 170 kV – 200 kV BIL | 95 kV – 170 kV BIL |
| Insulating Liquid Media | High-Grade Mineral Oil (IEC 60296) | Inhibited Mineral Oil / Synthetic Ester | FR3 Natural Ester (Fire Resistant) |
| Cooling System Type | ONAN (Oil Natural Air Natural) | ONAN / ONAF Forced Air Option | ONAN Heavy-Duty Radiator Panel |
| Switching & Fusing | Bay-O-Net Fuses + ELSP Backup | Two-Position / Four-Position LB Switch | Integrated Fused Disconnector Assembly |
| Enclosure Protection Class | IP54 Outdoor Weatherproof / NEMA 3R | IP56 Tamper-Proof / NEMA 4X Stainless | IP65 Marine C5-M Anti-Corrosion Finish |
Navigating Nigeria’s Power Grid Landscape & Environmental Realities
How Volta Transformers & Pooja Group of Industries solve severe grid fluctuations, tropical heat, and humidity through advanced OEM transformer design.
1. Severe Voltage Instability & Surge Withstand
The Nigerian national grid experience frequent load shedding, harmonic pollution, and sudden voltage spikes on 11kV and 33kV lines managed by DISCOs (such as Eko DISCO, Ikeja Electric, AEDC, and PHED). Our pad-mounted units feature reinforced turn-to-turn insulation, high-grade CRGO (Cold Rolled Grain Oriented) silicon steel cores, and multi-position Off-Load or On-Load Tap Changers (OLTC) to stabilize output voltages under fluctuating input feeds.
2. Tropicalization & Extreme Thermal Dissipation
With ambient temperatures frequently exceeding 40°C in Northern regions (Kano, Kaduna, Maiduguri) combined with high solar radiation, transformers risk thermal breakdown. We design our OEM units with a lowered thermal rise ceiling—55°C oil / 65°C winding temperature rise—incorporating oversized radiator fins and high-flashpoint insulation oils to prevent premature thermal aging.
3. Coastal Salt Fog & Humidity Protection
In coastal industrial hubs like Lagos Port, Port Harcourt, and Warri, high air humidity and airborne salt deposits rapidly corrode standard steel enclosures. Our pad-mount cabinets undergo multi-stage zinc-phosphate pre-treatment followed by thermosetting epoxy-polyester powder coating exceeding 160 microns, achieving C5-M marine anti-corrosion compliance.
Why Partner with Volta Transformers / Pooja Group of Industries
Leveraging over 15 years of proven manufacturing excellence, global export expertise, and rigorous quality control systems from Vadodara, Gujarat to supply Nigeria's growth.
ISO 9001:2015 & BIS Certification Framework
Operating under Volta Green Energy Pvt. Ltd. (Pooja Group of Industries), our production lines follow stringent ISO 9001:2015 quality management procedures. Every pad-mounted transformer unit exported to Nigeria undergoes routine, type, and special testing according to IS 1180: Part 1: 2014 and IEC 60076 standards, including dielectric strength, lightning impulse, temperature rise, and short-circuit withstand verification.
Seamless Modular Switchgear Integration

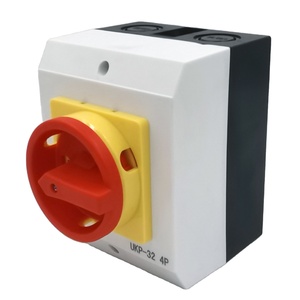

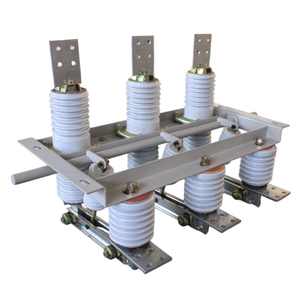

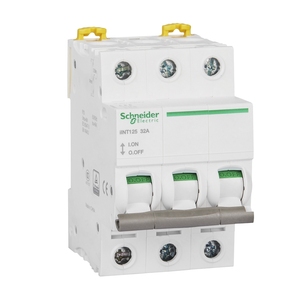

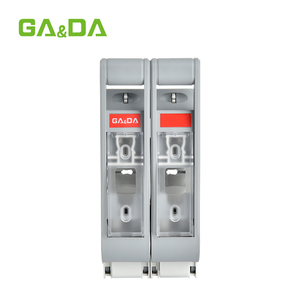

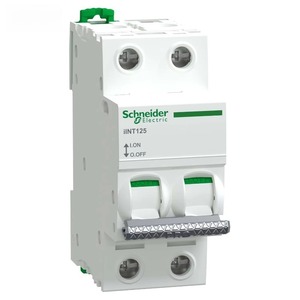

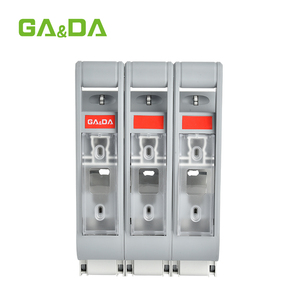

As a total OEM solutions provider, we integrate premium internal low-voltage and high-voltage protection switchgear—including HR18 Fuse Switches, GN19C-10 Isolating Switches, Acti9 IINT125 Disconnectors, and IP65 Rotary Switches—into our pad-mounted transformer cabinets. This creates a fully turnkey, factory-tested unit ready for immediate field installation upon arrival at Nigerian ports.
Frequently Asked Questions by Nigerian Procurement Engineers & Importers
Detailed answers addressing regulatory compliance, SONCAP certification, logistics to Apapa/Tin Can ports, and technical grid integration in Nigeria.
Request OEM Specifications & Export Pricing for Nigeria
Partner with a trusted global transformer manufacturer. Contact our engineering team today for technical datasheets, CAD dimensional drawings, SONCAP certification details, and competitive CIF Apapa / Lagos freight pricing.
