Industrial Voltage & Power Transformer Lineup
Explore our BIS & ISO 9001:2015 certified transformer product portfolio engineered for extreme environmental tolerance, minimal dielectric loss, and smart grid interoperability.
Wanbo-183 Single-Phase 110V Toroidal Autotransformer
Capacity: 10kVA - 50kVA | 60Hz
Winding: EC-Grade High Conductivity Aluminum

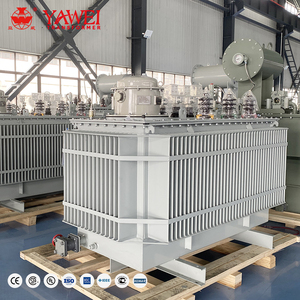

Industrial 10kV 100kVA Oil-Immersed Step Down Transformer
Range: 30kVA to 3150kVA Three-Phase
Cooling: ONAN Mineral Oil Dielectric

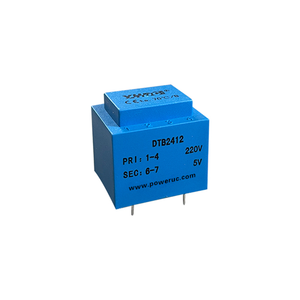

YHDC PCB Mounting Synchronous Voltage Transformer DTB2412
Primary Voltage: ≤ 230V RMS
Application: Precision Instrumentation & Metering

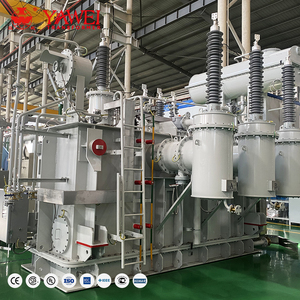

Substation Grade 100MVA-250MVA 220kV/33kV Power Transformer
Voltage: 220kV to 33kV Step-Down
Features: On-Load Tap Changer (OLTC)

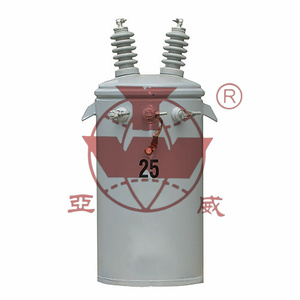

Pole-Mounted 15kVA-37.5kVA Silicon Core Oil Transformers
Core: Cold-Rolled Grain-Oriented (CRGO) Steel
Enclosure: Weatherproof Hermetically Sealed Tank
Factory Supply 220kV/230kV 16MVA-50MVA Power Transformer
High Voltage: 220kV / 230kV Utility Grid
Cooling Method: ONAN / ONAF Radiator Bank

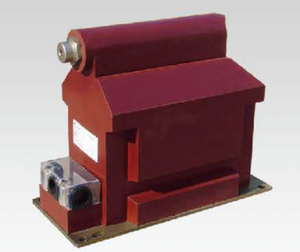

Instrument Voltage & Current Transformer for AIS Switchgear
Accuracy Class: 0.2S / 0.5 Revenue Metering
Insulation: Epoxy Resin Vacuum Cast

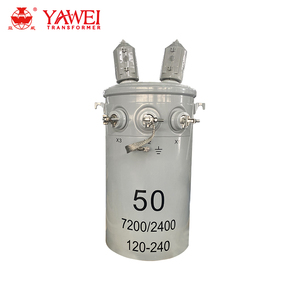

High-Performance 13.8kV Overhead Distribution Transformer
Capacity: 15kVA, 25kVA, 37.5kVA, 50kVA, 75kVA, 100kVA
Standard: IEEE C57.12.20 / ANSI Compliant
Global Transformer Market Trends & Strategic Procurement Guide (2026–2030)
An authoritative analysis on decarbonization, smart grid integration, high-frequency harmonic mitigation, and lifecycle thermal management in modern power infrastructure.
1. Transition to Amorphous Cores & Low-Loss Steels
Modern voltage transformer factories are rapidly phasing out traditional non-grain-oriented electrical steels in favor of Amorphous Metal Alloys and high-permeability Cold-Rolled Grain-Oriented (CRGO) steel sheets. Amorphous core transformers exhibit up to 70% lower no-load hysteresis losses, substantially reducing continuous operational baseline costs for electrical distribution utilities.
2. Renewable Energy & Inverter-Duty Customization
With the exponential expansion of utility-scale solar PV arrays and offshore wind farms, standard distribution transformers face severe thermal stress due to high harmonic distortion (THD). Next-generation Solar & Wind Inverter-Duty Transformers are engineered with multi-winding configurations, electro-static shielding between primary-secondary coils, and K-factor harmonic derating ratings.
3. Eco-Friendly Bio-Ester Dielectric Liquids
Environmental regulations are pushing enterprise buyers to choose natural and synthetic ester dielectric fluids over conventional mineral oils. Bio-esters offer a high fire point (> 300°C), self-extinguishing flame resistance, non-toxic biodegradability, and the ability to absorb moisture without accelerating insulation paper breakdown, extending transformer lifespan by up to 30%.
Information Gain: Critical Engineering Specifications in B2B Sourcing
When procuring high-voltage electrical apparatus from overseas manufacturers, procurement teams must evaluate beyond base unit pricing. The total cost of ownership (TCO) over a standard 30-year operational lifecycle is predominantly governed by No-Load Losses ($P_0$), Load Losses ($P_k$), and thermal insulation degradation rates. According to IEC 60076-1 and IS 1180 (Part 1): 2014 guidelines, modern distribution units must conform to strict loss level ceilings (Level 1, Level 2, or Level 3) to minimize grid transmission attenuation.
Furthermore, dielectric breakdown strength is paramount. The dielectric fluid must maintain a breakdown voltage (BDV) exceeding 60 kV under standard gap testing protocols (IEC 60156). Advanced factories incorporate online vacuum drying chambers (VPD process) during core assembly to achieve a moisture content of less than 10 ppm in paper insulation prior to oil impregnation. This meticulous process prevents micro-partial discharges (< 10 pC at 1.2 Un) that inevitably cause catastrophic insulation failure under lightning surge conditions.
In high-vibration or heavy industrial environments such as steel manufacturing arc furnaces and chemical processing plants, mechanical short-circuit withstand capacity must be verified through dynamic stress calculations (electrodynamic forces during sudden external short-circuit). Core structures constructed with rigid tie-rod clamping and step-lap core geometries ensure sound acoustic damping (< 55 dB noise rating) while preventing core lamination shifting during trans-oceanic shipping.
B2B Transformer Procurement Technical Matrix
A comparative evaluation of standard transformer topologies for utility substations, industrial plants, and commercial complexes.
| Transformer Category | Typical Voltage Class | Cooling Medium | Efficiency Rating | Harmonic Tolerance | Best Suited Application |
|---|---|---|---|---|---|
| Oil-Immersed Distribution | 11kV / 22kV / 33kV | ONAN / ONAF Mineral Oil | 99.1% - 99.4% (IS 1180) | Standard (THD < 5%) | Municipal Power Distribution, Rural Grids |
| Cast Resin Dry-Type (CRT) | 11kV / 33kV Class | AN / AF Forced Air | 98.8% - 99.2% (Class F/H) | Moderate (K-Factor 4/9) | High-Rise Towers, Hospitals, Data Centers |
| Solar Inverter Duty | 33kV / 66kV Utility Grid | ONAN Synthetic Ester | > 99.5% Low Loss | High (K-Factor 13/20) | Photovoltaic Solar Farms, Wind Turbines |
| Arc Furnace Duty | 33kV to Extra Low Volt | OFAF / OFWF Forced Oil/Water | High Duty Heavy Ampere | Extreme Non-Linear Loading | Steel Smelting, Aluminum Foundries |
| Pole-Mounted Single Phase | 11kV / 13.8kV / 34.5kV | ONAN Hermetically Sealed | ANSI / IEEE C57 Level | Standard Overhead Lines | Suburban & Agricultural Distribution |
Volta Transformers – Part of Pooja Group of Industries
Operating under Volta Green Energy Pvt. Ltd. and backed by over 15 years of manufacturing pedigree since 2001, our state-of-the-art facility situated on NH-48 in Vadodara, Gujarat, India represents the apex of electrical equipment manufacturing.
ISO 9001:2015 Certified
Comprehensive quality management systems spanning raw material testing to final routine and type testing.
BIS Approved (IS 1180)
Fully compliant with Bureau of Indian Standards Part 1: 2014 for energy-efficient oil-immersed transformers.
25 MVA / 66 kV Capacity
Heavy infrastructure manufacturing capability equipped with high-capacity cranes, vacuum drying, and automated winding.
Global Export Network
Supplying engineered transformer units across North America, Middle East, Africa, and Southeast Asia.
Frequently Asked Questions (FAQ)
Expert technical clarity on design specifications, testing protocols, thermal thresholds, and custom manufacturing options.
