Featured Pole-Mounted Distribution Transformers
Explore our range of factory-direct single-phase and three-phase overhead pole transformers engineered for severe duty outdoor environments, rural grid electrification, and industrial power distribution.

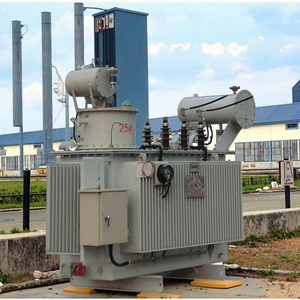

- Voltage Class: 20kV / 480V
- Rating: Up to 5000 kVA (5 MVA)
- Cooling: ONAN Outdoor Standard
- Standard: IEC 60076 / IEEE
- Primary: 13.8kV / 13.2kV
- Secondary: 240V / 480V
- Mounting: Dual Pole Brackets
- Availability: Quick-Ship Program

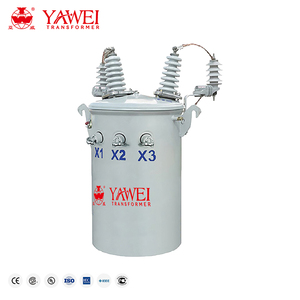

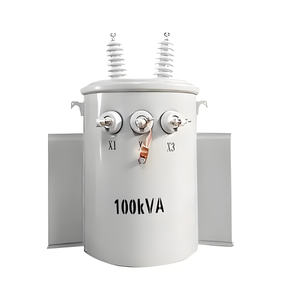

- Rating: 100 kVA Single Phase
- High Voltage: 7.62 kV / 13.8 kV
- Low Voltage: 120/240V, 240/480V
- Norm: ANSI C57.12.20 Compliant
- High BIL Rating: Up to 150kV

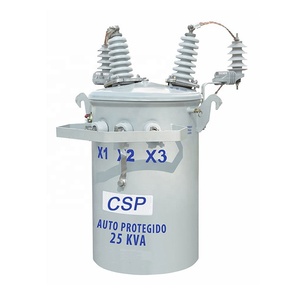

- Primary Voltage: 34.5 kV
- Winding Material: High Conductivity Cu/Al
- Tank: Hermetically Sealed Steel

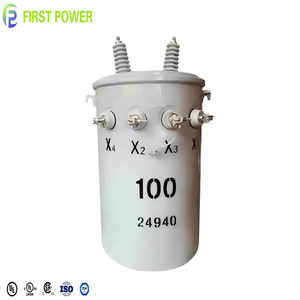

- Frequency: 50Hz / 60Hz Dual
- Tappings: ±2x2.5% Off-Load Tap
- Enclosure: Hot-Dip Galvanized / C5-M
- Loss Level: Ultra Low No-Load Losses
- Primary Rating: 12 kV / 11 kV
- Secondary Output: 240V / 120V
- Dielectric Fluid: Mineral Oil / Bio-Ester
- Bushings: Porcelain / Polymer Type
- High Voltage System: 33 kV Primary
- Conductor: 99.9% Electrolytic Copper
- Short Circuit Resistance: High Stiffening
- Application: Remote Microgrids

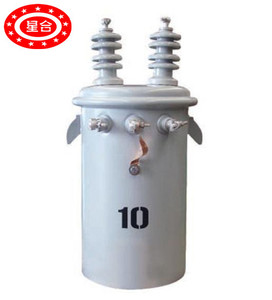

- Step-Down Ratings: 15 to 50 kVA
- Overload Capacity: 120% Continuous
- Protection: Pressure Relief Valve & Arrester
- Factory Price: OEM Direct Bulk Supply
Custom OEM Pole-Mounted Transformers: Technical Architecture, Manufacturing Excellence & Grid Reliability
As global power distribution networks undergo rapid modernization to accommodate renewable integration, electric vehicle charging loads, and extreme weather phenomena, the requirement for ultra-reliable, high-efficiency pole-mounted transformers has reached an unprecedented priority. Overhead pole transformers serve as the critical final step-down link in electrical distribution infrastructure, stepping down medium-voltage transmission power (ranging from 6kV to 34.5kV) directly to usable low-voltage residential, commercial, and agricultural levels (120V, 240V, 480V).
1. Electromagnetic Core & Winding Engineering Fundamentals
The heart of an overhead pole-mounted transformer lies in its electromagnetic core and conductor geometry. To meet stringent international energy efficiency standards—such as IEEE C57.12.20, IEC 60076, and DOE 2016 loss limits—our OEM manufacturing facilities implement advanced core cutting and step-lap mitering technologies.
Modern single-phase overhead transformers utilize either a shell-type or core-type construction. High-permeability CRGO silicon steel (grade M3/M4 or laser-treated domains) is wound or stacked with zero air-gap tolerances to minimize magnetizing current. For specialized green energy grids, Amorphous Alloy Cores are deployed, offering up to 70% lower no-load power losses compared to traditional silicon steel, resulting in drastically diminished operational carbon footprints for municipal power authorities.
Electrolytic Conductor Systems
Utilizing 99.9% pure electrolytic copper or EC-grade aluminum strips. Thermal Class H diamond-pattern epoxy paper insulation ensures maximum short-circuit dielectric bonding under transient fault currents.
Advanced Dielectric Cooling
Filled with high-dielectric mineral insulating oil (inhibited or uninhibited) or eco-friendly natural ester bio-fluids (FR3). Standard temperature rise limits are controlled at 65°C for oil and 100°C for winding insulation.
C5-M Marine Tank Protection
Hermetically sealed mild steel or stainless steel tanks engineered with automated robot welds, shot-blasting, zinc-rich primer coating, and polyurethane topcoats tested for 1,000+ hours of salt spray exposure.
2. Comprehensive Technical Specifications & Operational Benchmarks
Below is an engineering reference matrix illustrating technical parameters across single-phase and three-phase custom OEM pole transformers manufactured in our certified plants for international utilities:
| Transformer Parameter | Single-Phase Overhead Unit | Three-Phase Pole-Mounted Unit | Heavy-Duty Wind/Solar OEM Unit |
|---|---|---|---|
| KVA Capacity Range | 10 kVA – 167 kVA (Custom up to 333 kVA) | 30 kVA – 500 kVA (Custom up to 5 MVA) | 500 kVA – 5000 kVA (5 MVA) |
| Primary Voltage Class | 2.4 kV to 34.5 kV (ANSI C57 / IEC) | 6 kV to 35 kV | 11 kV, 20 kV, 33 kV, 34.5 kV |
| Secondary Voltage | 120/240V, 240/480V Split Phase | 208Y/120V, 480Y/277V, 415V | 400V, 480V, 600V, 690V |
| Frequency | 50 Hz / 60 Hz | 50 Hz / 60 Hz | 50 Hz / 60 Hz |
| Vector Group / Connection | Single Phase I-0 (Groundable Wye) | Dyn11, Yyn0, Dyn1 | Dyn11 / Dual Secondary Inverter Duty |
| Insulation Thermal Class | Class A (105°C) / Class A+ (65°C Rise) | Class A / Class F options | High Temp Nomex Reinforced |
| Tank Type & Corrosion Rating | Hermetically Sealed / C5-M Anti-Corrosion | Corrugated Radiator Tank / Sealed | Outdoor Heavy Structural Steel Tank |
| Impulse Withstand (BIL) | Up to 150 kV BIL | Up to 200 kV BIL | Up to 250 kV BIL |
3. Future Industry & Procurement Trends in Overhead Distribution Transformers
Procurement directors and power distribution engineers must evaluate long-term macro trends when contracting OEM transformer suppliers. The transition toward smart grids and sustainable electrical infrastructure is driving three critical design shifts:
- Bio-Degradable Vegetable Esters over Mineral Oils: Environmental mandates in North America and Europe are incentivizing utilities to specify natural ester dielectric fluids. Ester fluids boast a flash point exceeding 300°C (K-class), reducing wildfire risks from overhead pole transformer catastrophic failures.
- Smart Sensor Integration & Online Monitoring: Modern OEM pole transformers are increasingly integrated with low-cost IoT pressure sensors, oil temperature indicators, and wireless partial discharge monitoring tools for real-time asset performance telemetry.
- Harmonic Mitigating & K-Factor Ratings: With non-linear loads from solar grid-tied inverters and EV fast-charging stations causing high harmonic distortion, transformers engineered with K-4 to K-20 ratings prevent premature insulation degradation and transformer neutral line overheating.
4. Enterprise Advantages: Why Partner with Volta Transformers / Pooja Group
Rooted in over 15 years of technical expertise and operating under Volta Green Energy Pvt. Ltd. (a key enterprise of the established Pooja Group of Industries, founded in 2001), our manufacturing hub in Vadodara, Gujarat, India, represents the pinnacle of international transformer engineering.
Certified Compliance
Fully certified under ISO 9001:2015 quality systems and holds BIS approval under IS 1180: Part 1: 2014. Compliant with international standards IEC 60076, ANSI C57, and IEEE.
World-Class Manufacturing Facility
Spanning state-of-the-art production plots at Aatmiya-2 Industrial Park (POR, Vadodara), utilizing automated winding machinery, vacuum drying ovens, and computerized testing bays.
Global Deployment & Proven Track Record
Trusted by over 500 satisfied clients across utility networks, EPC contractors, solar IPPs, and heavy industries in over 30 countries globally with rapid lead times.
Our rigorous quality control regimen guarantees that every single transformer undergoes mandatory routine testing before shipment: winding resistance measurement, voltage ratio & phase displacement verification, short-circuit impedance & load loss testing, separate-source AC withstand voltage testing, induced overvoltage testing, and Dissolved Gas Analysis (DGA) oil purity diagnostics.
