Featured Mining & Power Distribution Transformers
Heavy-duty, explosion-proof, and step-down transformer units engineered specifically for severe mining environments, subterranean tunnels, and utility substations.

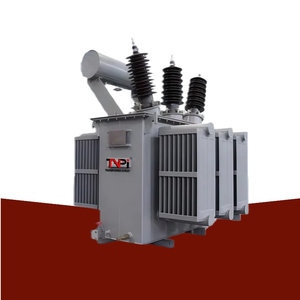

69kV 33kV 10MVA 20MVA 30MVA ONAN Copper Oil Immersed Power Transformer for Substation Step Down
Advanced Control 75 MVA 110 KV 11 KV Power Transformer For Regional Substation

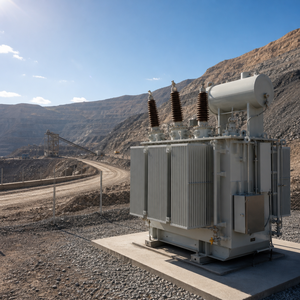

Mining Transformer Three Phase Oil Immersed Power Transformer 500kVA-2500kVA 22kV 35kV 66kV for Mining Plant

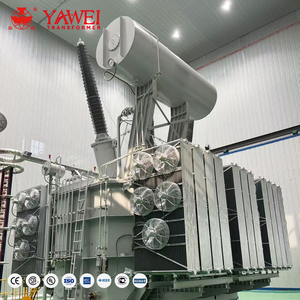

Electrical Equipment High Quality Three Phase Transformer High Frequency And High Voltage 110kV 31.5mVA Power Transformers

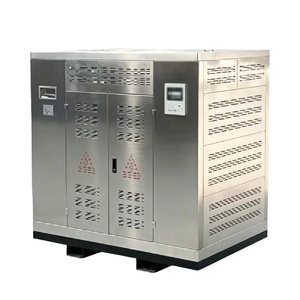

KKSG Mining Dry Transformer 30-2500kVA, Low Loss Low Noise, F/H 180°C Insulation for Mines & Tunnels

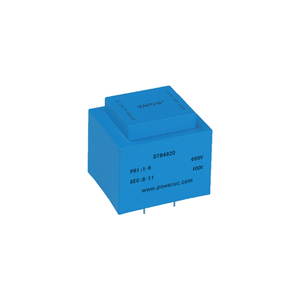

YHDC High Voltage Transformer / Step Down Synchronous Transformer DTB4820
ExdI Mining Explosion-Proof Dry Transformer 6kV/1.14kV 630kVA

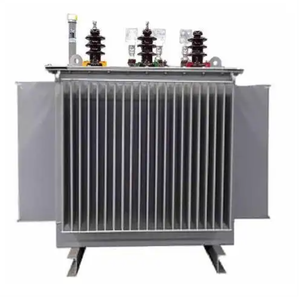

S11-M 500kVA 10kV 0.4kV Pure Copper Winding Oil Immersed Power Transformer
Industry Whitepaper: Custom OEM Mining Transformers Engineering & Operational Dynamics
Mining electrification presents one of the most severe operational challenges for electrical engineers. Power distribution equipment deployed in subterranean mine shafts, open-pit excavations, mineral processing facilities, and hard-rock tunnels operates under extreme physical thermal, electrical, and mechanical stresses. Standard commercial-grade transformers fail prematurely when subjected to constant vibration, damp ambient humidity, abrasive conductive coal dust, and severe voltage distortions caused by heavy Variable Frequency Drives (VFDs) powering crushers and haulers.
As a premier Custom OEM Mining Transformers Supplier & Exporter, our engineering paradigm revolves around providing Information Gain—moving beyond surface-level specifications to address the core physics of subterranean energy transfer, mechanical resonance damping, explosion suppression, and long-term dielectric thermal stability.
Core Information Gain: Why Standard Transformers Fail in Underground Mines
Subterranean mining power grids experience frequent load shedding, high-amplitude switching surges, and significant harmonic distortion (THD > 12%). Standard distribution transformers designed under IS 1180 or IEC 60076 for commercial grids suffer from excessive eddy current losses in the windings, localized overheating (hot-spot formation), thermal breakdown of Class A insulation, and mechanical core displacement due to continuous tunneling vibrations. Mining-duty transformers require specialized K-Factor design, reinforced tank structures, and flameproof ExdI enclosure certifications.
Engineering Custom OEM Mining Transformers: Technical Deep Dive
Custom Original Equipment Manufacturer (OEM) design for mining operations requires tailored structural engineering to meet tight shaft clearances, portable mine-sled transport requirements, and stringent safety standards such as MSHA, IEC 60076-11, and IS 2026. Below are the key engineering pillars of our custom manufacturing process:
Subterranean Explosion-Proof (ExdI) Enclosures
Underground coal and gassy mines demand flameproof enclosures capable of withstanding internal gas explosions without igniting ambient methane or coal dust. Our ExdI-rated dry-type mining transformers feature heavy-gauge carbon steel or stainless steel welded structures designed with wide flame paths and pressure-resistant seals tested up to 1.0 MPa hydrostatic pressure.
High-Grade CRGO Core & Low Loss Topology
Utilizing high-permeability, domain-refined Cold Rolled Grain-Oriented (CRGO) silicon steel laminations (such as Grade M0H or 23ZH085), our magnetic cores are assembled using Step-Lap mitred jointing techniques. This reduces no-load losses, minimizes excitation current, and suppresses magnetic noise emissions down to under 58 dB in restricted tunnel environments.
Class H / Class C Insulation Systems
To resist ambient thermal spikes, our dry-type KKSG and explosion-proof transformer series utilize Nomex® paper layer insulation and Vacuum Pressure Impregnation (VPI) with high-temperature epoxy resins rated for Class H (180°C) or Class C (220°C). This prevents moisture ingress and thermal degradation under continuous 120% overload conditions.
Harmonic Suppression & K-Factor Ratings
Heavy machinery driven by 6-pulse, 12-pulse, or 18-pulse VFD rectifiers introduces severe harmonic currents (3rd, 5th, 7th, 11th, 13th). We custom design transformers with K-Factor ratings of K-4, K-9, or K-13, employing electrostatic shielding between primary and secondary copper windings to shunt high-frequency noise directly to ground.
Comparative Analysis: Conventional Power Transformers vs. Custom OEM Mining Transformers
Selecting the correct transformer architecture directly impacts operational uptime, safety compliance, and Total Cost of Ownership (TCO). The data matrix below highlights the core performance differences between standard utility transformers and our heavy-duty custom OEM mining units:
| Performance Vector | Standard Commercial / Utility Transformer | Custom OEM Mining Transformer (Volta Engineering) |
|---|---|---|
| Enclosure Integrity | NEMA 3R / IP54 sheet metal cabinet. Unsuited for explosive gas. | ExdI Flameproof / IP65-IP68 heavy reinforced steel, pressure-tested to 1.0 MPa. |
| Harmonic Tolerance | K-1 Rated (Pure sinusoidal 50/60Hz loads only). Overheats on VFDs. | Custom K-4 to K-20 rated with electrostatic copper shielding & stray-loss reduction. |
| Vibration Resistance | Standard core clamping; susceptible to mechanical displacement. | Resonant-frequency calculated clamping, rubber anti-vibration mounts, skid-base mounted. |
| Insulation Thermal Class | Class A (105°C) or Class F (155°C) liquid/dry insulation. | Class H (180°C) or Class C (220°C) Nomex® VPI resin insulation system. |
| Cooling Options | ONAN / ONAF standard radiator bank. | Corrosion-resistant stainless radiator, forced air (AF), or synthetic ester fluid (KNAN). |
| Transport Mobility | Fixed concrete pad mounting only. | Integrated heavy-duty mining sled with tow lugs and low head-room dimensional profile. |
Future Procurement Trends in Global Mining Transformers
The global mining sector is undergoing a rapid transition driven by environmental sustainability mandates, autonomous equipment adoption, and deep-shaft mineral extraction. Mining procurement managers and EPC contractors must align their supply chain strategies with these evolving technical vector trends:
1. Electrification of Underground Haulage Fleets
Traditional diesel-powered haul trucks are rapidly being replaced by battery-electric vehicles (BEVs) and trolley-assist electric haulers. This shift causes massive, rapid power draws on subterranean electrical substations. Future procurement requires portable, high-capacity step-down transformers (e.g., 33kV to 1.1kV / 3.3kV) capable of handling pulsed mega-watt level fast-charging loads without voltage sag or core saturation.
2. Integration of Eco-Friendly Synthetic Ester Fluids
In open-pit and environmentally sensitive underground sites, oil-immersed transformers using traditional mineral oil present fire hazards and environmental spill liabilities. Modern procurement specifies synthetic ester fluids (such as MIDEL 7131). Synthetic esters offer a high flash point (>300°C), self-extinguishing fire safety, and 100% biodegradability, ensuring compliance with strict global environmental protection regulations.
3. IoT-Enabled Condition Monitoring & Predictive Maintenance
Unplanned mine downtime can cost operators over $50,000 per hour. Modern custom OEM mining transformers are increasingly specified with integrated fiber-optic hot-spot temperature sensors, Dissolved Gas Analysis (DGA) micro-monitors, digital oil-level sensors, and online Partial Discharge (PD) monitoring systems. These sensors stream real-time operational telematics over MODBUS/IEC 61850 protocols directly to the mine's central SCADA system.
Industry & Technological Development Trends
Technological advancement in metallurgy, dielectric science, and computer-aided finite element analysis (FEA) is reshaping the transformer manufacturing landscape:
- Amorphous Metal Cores for Light-Load Efficiency: Implementation of amorphous alloy core ribbons significantly reduces no-load core losses by up to 70% compared to conventional CRGO steel, providing massive energy savings for continuous-duty ventilation fan networks.
- 3D Finite Element Method (FEM) Thermal Modeling: Advanced multiphysics software enables our design engineers to simulate electromagnetic flux distribution, thermal hot spots, and mechanical stress under seismic or shock conditions prior to manufacturing.
- Compact Modular Substations (CSS): Integrating the high-voltage switchgear, mining-duty step-down transformer, and low-voltage distribution breaker panel into a single, fully-enclosed portable skid unit reduces installation footprints by 40% inside narrow mine cross-cuts.
Why Partner with Volta Transformers / Pooja Group
Backed by over 15 years of precision manufacturing excellence, ISO certifications, and a global foot-print across 500+ satisfied industrial client deployments.
ISO 9001:2015 & BIS Certified
Our state-of-the-art manufacturing facility in Vadodara, Gujarat operates under strict ISO 9001:2015 quality management systems. All distribution units strictly comply with Bureau of Indian Standards (BIS) approval under IS 1180: Part 1: 2014 and international IEC 60076 standards.
Pooja Group Industry Heritage
As an elite brand under Volta Green Energy Pvt. Ltd. and part of the Pooja Group of Industries (established in 2001), we leverage two decades of engineering legacy, extensive metallurgy research, and deep domain expertise in heavy electrical apparatus manufacturing.
Complete In-House Testing Laboratory
Every single OEM mining transformer undergoes routine and type testing prior to dispatch, including Winding Resistance, Voltage Ratio, Vector Group verification, Dielectric Breakdown Voltage (BDV) testing, Impulse Voltage Withstand, and Partial Discharge measurements.
Fully Customizable OEM Solutions
Whether you require specific primary/secondary voltage step-down ratios (e.g., 66kV, 35kV, 22kV, 10kV down to 1.14kV, 660V, 400V), specialized skid dimensions, dual-voltage secondary windings, or custom terminal boxes, our engineering team custom-builds to your exact bid specifications.
Mining Transformer Procurement FAQ
Expert technical answers to critical questions asked by mining electrical engineers, EPC procurement officers, and plant managers.
Request a Custom OEM Mining Transformer Quote
Consult directly with our senior transformer engineering team to review your single-line diagrams (SLDs), technical bid specifications, or subterranean space constraints.
