Engineering Excellence: Architectural Anatomy of Modern Unit Substations
As China's leading Unit Substations Manufacturer and Supplier, we specialize in the design, engineering, and factory-assembled integration of medium-to-low voltage prefabricated package substations (CSS) compliant with international standard IEC 62271-202 and IEEE C37.74. A unit substation (also known as a compact or package substation) serves as the primary power distribution hub that steps down high distribution voltages (ranging from 11kV, 22kV, 33kV to 55kV) to utilization voltages (415V, 400V, 220V) for heavy industrial, commercial, mining, and renewable energy grids.
Key Information Gain Insight: Factory Prefabrication vs. Field-Erected Substations
Industrial procurement metrics reveal that factory-commissioned prefabricated unit substations reduce total site installation costs by up to 45% and shorten project commissioning schedules from 6 months down to 3 weeks compared to traditional brick-and-mortar substations. Built inside climate-controlled factory environments, every unit undergoes full routine routine testing prior to dispatch.

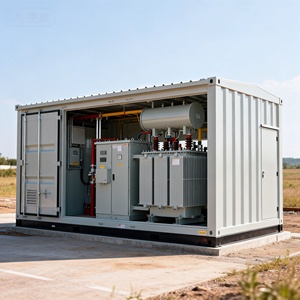

1. Medium Voltage (MV) Switchgear
Houses Gas-Insulated Switchgear (GIS) or Air-Insulated Switchgear (AIS) equipped with Vacuum Circuit Breakers (VCB) or SF6 Ring Main Units (RMU). Features automated protection relays, internal arc classification (IAC AB 20kA 1s), and motorized load-break switches.
2. Transformer Core Compartment
Accommodates high-efficiency Hermetically Sealed Oil-Immersed Transformers or Cast Resin Dry-Type Transformers. Utilizes cold-rolled grain-oriented (CRGO) silicon steel cores and 99.99% electrolytic copper windings for minimal no-load losses.
3. Low Voltage (LV) Distribution Panel
Integrated with Air Circuit Breakers (ACB), Molded Case Circuit Breakers (MCCB), automatic power factor correction (APFC) capacitor banks, smart energy metering, and busbar trunking rated up to 6300A with short-circuit withstand up to 100kA.
Technical Specification Matrix for Unit Substations
| Parameter / Parameter | Standard Range (IEC / GB Standards) | Customizable Options / Industrial Grade |
|---|---|---|
| Rated Primary Voltage (kV) | 6kV, 10kV, 11kV, 15kV, 22kV, 33kV, 35kV | Up to 55kV (Specialized Railway & Utility Substation) |
| Rated Secondary Voltage (V) | 400V, 415V, 433V, 690V | Dual-output / Multi-tap options available |
| Rated Capacity (kVA) | 100 kVA to 3750 kVA | Up to 10,000 kVA (Modular Skid Layout) |
| Enclosure Protection Class | IP33, IP34, IP44, IP54 | IP65 / NEMA 4X Stainless Steel / Marine C5-M Coating |
| Insulation & Cooling | ONAN, ONAF, KNAN (Ester Oil), AN/AF (Dry) | High-fire-point Synthetic Ester Bio-fluid |
| Short-Circuit Withstand | 20kA / 1s, 25kA / 3s | Up to 40kA / 3s for heavy industrial installations |
Factory Direct Manufacturing & Quality Verification
Backed by over 15 years of operational experience, our state-of-the-art manufacturing infrastructure spans advanced CNC core cutting lines, automated vacuum drying ovens, and high-voltage impulse test bays. As a premier original equipment manufacturer (OEM), we adhere strictly to ISO 9001:2015 Quality Management Systems, ISO 14001 Environmental Standards, and CE / BIS certifications.
- Complete In-House R&D and Custom Structural Design Capability
- 100% Routine Testing: Partial Discharge, Lightning Impulse & Loss Measurement
- Heavy Industrial & Outdoor Enclosures Engineered for Extreme Climates (-40°C to +55°C)
Rigorous 4-Step Quality Assurance Workflow
1. Design & Simulation
3D CAD thermal fluid modeling and electromagnetic field stress optimization.
2. Precision Assembly
Automated core stacking, laser-guided winding, and vacuum pressure impregnation.
3. Routine & Type Testing
Dissolved gas analysis (DGA), dielectric breakdown, and temperature rise verification.
4. Global Dispatch
Export seaworthy wooden packaging with remote factory acceptance testing (FAT).
Global B2B Procurement Trends for Unit Substations (2025–2030)
The global market for prefabricated unit substations is undergoing a structural transition driven by grid modernization, green energy integration, and stringent decarbonization mandates. Engineering, Procurement, and Construction (EPC) contractors and electrical utility buyers must evaluate key macro purchasing trends to optimize procurement strategy:
1. Transition to Eco-Friendly Biodegradable Ester Liquids
Traditional mineral oil insulation is increasingly replaced by natural and synthetic ester fluids (such as FR3). Synthetic esters offer a flash point exceeding 300°C (Class K insulation), significantly eliminating explosion risks in urban or indoor package substations while providing 100% biodegradability in the event of accidental leaks.
2. Ultra-Low Loss & Amorphous Alloy Cores
With regulatory standards like EU Tier 2 EcoDesign and US DOE 2016 efficiency mandates, power utilities are prioritizing substations built with Amorphous Metal Cores or high-grade CRGO steel. Amorphous core unit substations reduce no-load core losses by up to 70-80%, lowering lifetime operating expenses (OPEX).
3. Modular Prefabrication & Skidded Mobile Substation Units
Industrial clients, particularly in solar PV farms, wind parks, and mining, are demanding plug-and-play skid-mounted unit substations. Pre-wired and factory-tested on heavy-duty structural steel channels, these units can be relocated effortlessly across harsh project terrains without requiring permanent civil foundations.
4. Digital FAT & Virtual Factory Inspections
Cross-border B2B procurement now leverages high-definition video monitoring and real-time sensor data streaming during Factory Acceptance Testing (FAT). Overseas buyers can verify voltage ratios, winding resistance, and impulse withstand tests remotely, drastically reducing procurement lead times.
Future Technology Roadmap: Next-Generation Substation Innovations
As smart power distribution networks evolve, unit substations are transforming from static passive node boxes into intelligent, connected digital assets. Key technological developments include:
IoT Sensor Integration & Edge Computing
Modern unit substations feature embedded wireless IoT sensors that monitor real-time transformer health parameters: oil temperature, winding hot-spot temperature via fiber optics (DTS), vibration spectrum analysis, and humidity levels inside switchgear cabinets.
IEC 61850 Substation Automation
Adoption of the IEC 61850 protocol standard enables seamless peer-to-peer communication between intelligent electronic devices (IEDs), protection relays, and centralized SCADA system software, facilitating self-healing smart grid automation.
Subterranean & Underground Compact Substations
For high-density megacities and premium real-estate commercial zones, underground unit substations housed in IP68 waterproof vaults offer space-saving footprint optimization and zero visual overhead impact while maintaining high thermal performance.
Frequently Asked Questions (FAQ) for Substation Procurement
Technical clarity and operational answers provided by our senior electrical engineering team to streamline your B2B sourcing decisions.
- Winding resistance measurements and voltage turns ratio verification
- Insulation resistance (Megger) and applied/induced voltage dielectric tests
- No-load loss and load loss measurement at rated frequency
- Partial discharge (PD) testing for MV switchgear and dry-type transformers
- Mechanical operation and interlock function validation across all breakers
