Top-Rated Switchgear Cabinets & Distribution Panels
Explore our certified low-voltage and medium-voltage switchboards, floor-standing metal enclosures, and withdrawable assemblies engineered for harsh industrial environments.

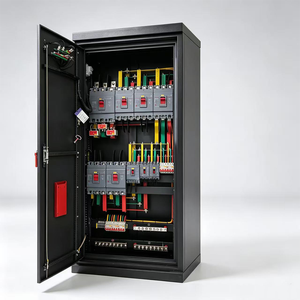

Low Voltage Electrical Switchgear Panel Distribution Box Power Cabinet
- Automatic Generator Paralleling
- ATS & Dual Power Input Logic
- Form 3b/4a Compartmentation

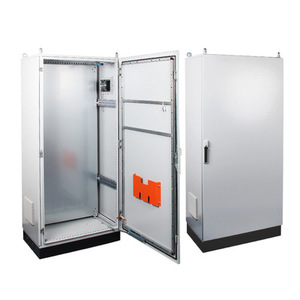

Large Metal Cabinet Enclosures Floor Stand Control Panel Board Cabinet
- Heavy-Duty 2.0mm Cold-Rolled Steel
- IP55 Ingress Protection Rating
- Customized Modular DIN Rails

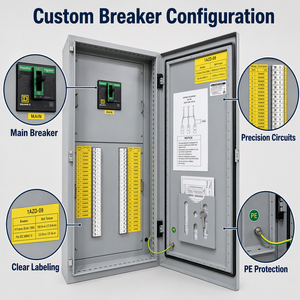

UL67 3 Phase 4 Wire Industrial Distribution Cabinet IP30 Tamper-Resistant
- North American Compliance (UL67)
- NEMA 1 / IP30 Safety Lockouts
- High Short-Circuit Capacity

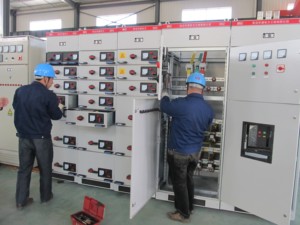

MNS Series Low-Voltage Assembled Switchgear Power Distribution Cabinet
- ABB MNS Modular Compatibility
- Up to 6300A Main Busbar Rating
- Maximum Operational Safety

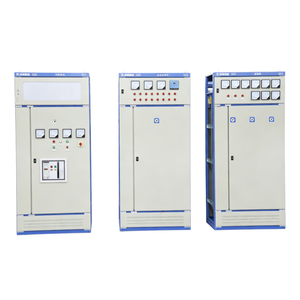

GGD Fixed Low Voltage Switchgear Cabinet AC400V-660V 630-3150A IP55
- Robust Fixed Metal Framework
- 50kA/1s Short-Time Withstand
- Ideal for Utility Sub-stations

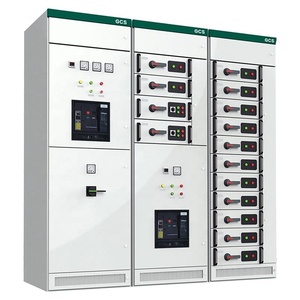

GCS Electric Meter Cabinets Low Voltage Withdrawable Complete Switchgear
- Independent Mechanical Interlocks
- High Density Meter Compartments
- Optimized Thermal Heat Dissipation

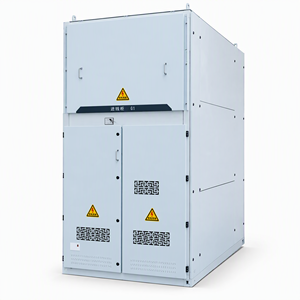

Armored Removable KYN61-40.5KV Metal Switchgear 1250A Metering Cabinet
- Vacuum Circuit Breaker (VCB) Trolley
- 31.5kA / 3s Short-Time Withstand
- Internal Arc Flash Pressure Relief

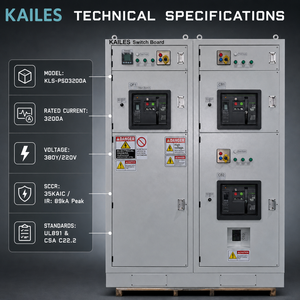

UL 891 CSA 3200A 35kAIC NEMA 1 3-Phase Distribution Switchboard Cabinet
- Integrated Motor Control Center (MCC)
- 3200A Continuous Current Rating
- 35kAIC Interrupting Capacity
The Strategic Role of Chinese Switchgear Manufacturers in Global Power Infrastructure
A comprehensive analysis of production ecosystems, structural reliability, quality verification protocols, and global supply chain integration.
In modern industrial manufacturing and power distribution networks, switchgear cabinets serve as the central neural command hubs for safety, electrical protection, motor control, and power routing. As global power grids undergo rapid decentralization—driven by large-scale renewable microgrids, high-density data centers, and heavy industrial automation—the demand for highly reliable, custom-engineered low-voltage (LV) and medium-voltage (MV) switchgear has escalated exponentially.
China has established itself as the world's premier manufacturing epicenter for advanced electrical switchgear assemblies. This market leadership is built upon an integrated manufacturing ecosystem: immediate access to ultra-pure T2 electrolytic copper, automated Salvagnini sheet-metal processing lines, localized high-voltage testing laboratories, and deep compliance experience across IEC 61439-1/2, IEC 62271-200, UL 891, and UL 67 standards. Overseas engineering procurement leaders, EPC contractors, and system integrators leverage Chinese OEM/ODM partnerships to balance capital expenditure (CAPEX) optimization with zero compromise on short-circuit withstand performance and operational longevity.
Key Information Gain Insight: Total Cost of Ownership (TCO) Shift
Strategic buyers are moving away from evaluating switchgear cabinets purely on initial unit acquisition costs. Instead, procurement specifications now mandate thermal dissipation modeling (FEA), dielectric aging analysis, and modular withdrawable compartment interchangeability to minimize 25-year operational expenditure (OPEX) and emergency downtime risks.
Comparative Analysis of Standard Switchgear Architectures
Selecting the optimal low-voltage and medium-voltage cabinet configuration based on current ratings, internal segregation, and operational flexibility.
| Cabinet Model | Structure Type | Rated Voltage (Ue) | Max Busbar Current | Short-Time Withstand (Icw) | Internal Segregation | Primary Target Applications |
|---|---|---|---|---|---|---|
| GGD Series | Fixed Framework | AC 400V / 660V | Up to 3150A | 50kA / 1s | Form 1 to Form 2b | Industrial Distribution, Power Plants, Municipal Substations |
| GCS Series | Withdrawable Drawer | AC 400V / 690V | Up to 4000A | 50kA - 80kA / 1s | Form 3b to Form 4a | Continuous Process Industries, Chemical Plants, High-Rises |
| MNS Series | Modular Withdrawable | AC 400V / 690V / 1000V | Up to 6300A | 80kA - 100kA / 1s | Form 3b to Form 4b | Heavy Metallurgy, Oil & Gas, Critical Data Centers |
| KYN61-40.5KV | Armored Metal-Clad | AC 40.5kV (Medium Voltage) | Up to 2500A | 31.5kA - 40kA / 4s | Metal Compartmentalized | MV Grid Transmission, Wind Farms, Heavy Industrial Substation |
| UL 891 / UL 67 | Fixed / Plug-in Panelboard | AC 240V / 480V / 600V | Up to 4000A | 35kAIC - 100kAIC | Dead-Front Construction | North American Industrial Facilities, Commercial Complexes |
Internal Separation Forms (Form 1 to Form 4b)
Internal segregation according to IEC 61439-2 defines the physical separation between busbars, functional units, and external terminals. Higher forms (Form 4a/4b) isolate busbars into dedicated metal compartments, ensuring that arc-flash incidents in one feeder drawer do not propagate to adjacent functional modules, safeguarding operational personnel during maintenance.
Busbar Metallurgy & Thermal Limit Modeling
Premium Chinese switchgear manufacturers utilize high-conductivity T2 copper (>99.9% IACS) with tin or silver plating across contact interfaces. Thermal stress modeling ensures that skin effects and proximity effects are minimized, maintaining busbar temperature rise strictly within the 65K limit mandated by international electrotechnical standards under 100% continuous rated current load.
Future Technology Trends Transforming Switchgear Procurement
Anticipating structural shifts in digital integration, SF6-free eco-insulation, smart diagnostics, and microgrid compatibility over the next decade.
1. IoT Digital Twin & Predictive Diagnostics
Modern switchgear is evolving into intelligent edge-computing devices. Wireless Surface Acoustic Wave (SAW) temperature sensors monitors busbar contact points in real time. Fiber-optic arc detection systems trigger circuit protection within 2 milliseconds, while online Partial Discharge (PD) monitoring predicts dielectric breakdown weeks before catastrophic failure occurs.
2. SF6-Free Eco-Friendly MV Switchgear
With global climate mandates targeting sulfur hexafluoride (SF6) greenhouse gas elimination, Chinese medium-voltage factories are pioneering SF6-free Ring Main Units (RMU) and GIS switchgear. Utilizing synthetic dry air, fluoronitrile (C4-FN) gas mixtures, and solid-phase resin insulation, these eco-cabinets deliver carbon-neutral performance while maintaining high dielectric strength.
3. Microgrid & Renewable Integration
As solar PV, wind farms, and Battery Energy Storage Systems (BESS) integrate directly into commercial power architectures, switchgear cabinets are now customized with multi-winding inverter duty panels, dynamic reactive power compensation (SVG), and active harmonic filters (AHF) to maintain total harmonic distortion (THD) under 3% per IEEE 519 standards.
Why Partner with Our Switchgear Manufacturing Infrastructure
Merging precision CNC fabrication, certified quality management, and deep international engineering compliance.
End-to-End Quality Control & Precision Engineering
Our manufacturing ecosystem is backed by over 15 years of continuous research, engineering design, and rigorous quality execution. Operating under an ISO 9001:2015 certified quality management system, every enclosure frame is laser-cut and CNC-bent to tolerance precision within ±0.1mm, ensuring smooth withdrawable drawer alignment and tight IP55 environmental sealing.
From 16-stage chemical pretreatment and electrostatic epoxy powder coating (salt-spray test resistance exceeding 1000 hours) to automated copper busbar bending and torque verification, our quality assurance protocols prevent premature insulation breakdown, surface corrosion, and contact resistance spikes.
Comprehensive Factory Verification Checklist
- [PASS] High-Voltage Dielectric Insulation Resistance Testing (>100MΩ)
- [PASS] Primary Current Injection & Protection Relay Calibration
- [PASS] Mechanical Drawer Interlock Reliability (10,000 Cycle Life)
- [PASS] Temperature Rise Limits Verification under 100% Rated Load
- [PASS] Ingress Protection (IP30 / IP55 / NEMA 1 / NEMA 3R) Seal Integrity
Step-by-Step OEM/ODM Procurement Roadmap for Global Buyers
How overseas engineering teams can effectively source, audit, and commission switchgear cabinets from China.
SLD & Spec Alignment
Submit Single Line Diagrams (SLD), short-circuit withstand specs ($I_{cw}$), control loop diagrams, and enclosure IP/NEMA environment requirements.
3D Modeling & General Arrangement
Review 3D SolidWorks General Arrangement (GA) drawings, busbar routing, thermal dissipation clearances, and external cable entry gland plates.
Factory Acceptance Testing (FAT)
Conduct live video or third-party (SGS/TÜV) FAT inspection covering dielectric withstand, protection tripping schemes, and mechanical drawer interlocks.
Export Packaging & SAT
Seaworthy vacuum-sealed foil wrapping in fumigated wooden crates, followed by Site Acceptance Testing (SAT) and commissioning guidance.
Frequently Asked Questions by Global Engineering Buyers
In-depth responses to technical inquiries regarding insulation, certification, thermal rise, and customization capabilities.
What is the difference between GGD fixed type and GCS/MNS withdrawable switchgear?
GGD switchgear utilizes fixed component mounting, making it highly economical and ideal for utility distribution where power interruptions during maintenance are acceptable. GCS and MNS feature withdrawable drawer modules, allowing individual feeder units to be isolated and swapped out in minutes without shutting down the entire main busbar system, essential for continuous process plants.
How do Chinese switchgear factories comply with IEC 61439 vs UL 891 standards?
IEC 61439 emphasizes design verification via type testing (temperature rise, short-circuit withstand, and clearance distances) for global and European markets. UL 891 governs North American dead-front switchboards with strict requirements on busbar ampacity densities, creepage distances, and UL-listed circuit breaker integration (e.g., Schneider, ABB, Siemens, or Eaton).
What short-circuit withstand capability ($I_{cw}$) can your cabinets achieve?
Our low-voltage withdrawable switchgear (MNS/GCS series) can be engineered for rated short-time withstand currents up to 80kA - 100kA for 1 second ($I_{cw}$), with peak withstand currents ($I_{pk}$) reaching up to 220kA. Medium-voltage KYN61 cabinets handle 31.5kA - 40kA for 4 seconds.
How is thermal management handled inside high-amperage (e.g., 4000A - 6300A) cabinets?
We implement forced air ventilation louvers, heat-dissipating top chimneys, high-emissivity black busbar coating, and non-magnetic phase separation plates to prevent eddy-current heating in the cabinet framework. Thermal finite element analysis (FEA) ensures operating temperatures remain well below IEC limits.
Can switchgear cabinets be customized for outdoor, marine, or highly corrosive environments?
Yes. For harsh outdoor environments, we manufacture NEMA 3R, NEMA 4X, or IP65 enclosures using 304 or 316L stainless steel, or marine-grade aluminum-zinc coated steel, coupled with anti-condensation space heaters and marine-grade epoxy powder coatings.
What internal separation forms are recommended for high-reliability industrial facilities?
We recommend Form 3b or Form 4b separation for critical industrial facilities. Form 4b isolates busbars from functional units and isolates all external cabling terminals into individual metallic compartments, preventing maintenance errors from escalating into catastrophic phase-to-phase faults.
How do you ensure busbar quality and minimize contact electrical resistance?
We exclusively use T2 electrolytic copper with >99.9% electrical conductivity. Contact surfaces are fully silver-plated or tin-plated, and assembly joints are torqued using calibrated digital torque wrenches to specified Newton-meter (N·m) values, followed by micro-ohm contact resistance testing.
What smart monitoring and communication protocols are supported?
Our intelligent switchgear integrates micro-processor protection relays, smart power meters, and wireless temperature sensors supporting IEC 61850, Modbus RTU/TCP, Profibus-DP, and Ethernet/IP protocols for seamless SCADA and building management system (BMS) integration.
Can switchgear cabinets be integrated with local brand components specified by the buyer?
Absolutely. While we supply complete turnkey solutions with top-tier Chinese components (Chint, Delixi), we routinely design custom mounting plates and copper busbar connections for buyer-specified components including ABB, Schneider Electric, Siemens, Mitsubishi, and Fuji breakers.
What is the typical production lead time and international export packing standard?
Standard production lead time is 25 to 35 days from engineering drawing sign-off. Cabinets are wrapped in moisture-proof vacuum foil with desiccant packs, corner-protected with high-density foam, and packed inside heavy-duty IPPC-certified fumigated plywood crates suitable for ocean freight container transport.
Request a Customized Switchgear Engineering Proposal
Connect directly with our senior electrical application engineers to review your Single Line Diagrams (SLD), request technical compliance documentation, or obtain competitive factory-direct pricing for your project.
Send an Inquiry
